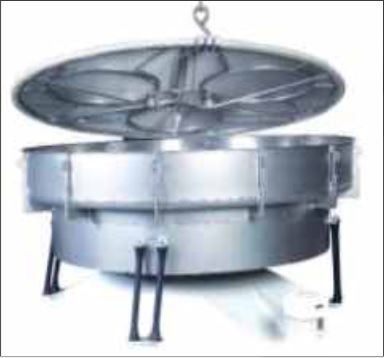

SCREENFAST

Principle:

The sieve throughput as well as the separation of oversized material and Ultrasonic Supported Sieving Technology evenly transmits as oscillating motion, in the micron range, onto the screen surface.



Components:

Ultrasonic Generator : A complete electronic unit that can be attached directly to the sieving machine, or mounted on a nearby wall.

Ultrasonic Sieve Resonator : Consists of a converter with ring resonator which are connected to the sieving frame with mounting plates, HF-electrical connection with housing and plug.

HF-connector cable: Standard length 3m/10 ft connects the Ultrasonic Sieving Resonator to the Ultrasonic Generator.

Advantages:

  • Increase in output upto 10times
  • Get rid of screen blinding
  • Achieve De-agglomeration of powder
  • Get Shaper cut and enhance the efficiency
  • No external power, hydraulic or battery require
  • No moving parts so less maintenance is required
  • Can be fitted easily in existing machine
  • Imparts the accelerating force only to the screen cloth hence there will be no damage to main body.
  • Longer screen life since cloth should not ne in tension.
