Clarifier

compact solution for treatment of drinking water, process water and wastewater

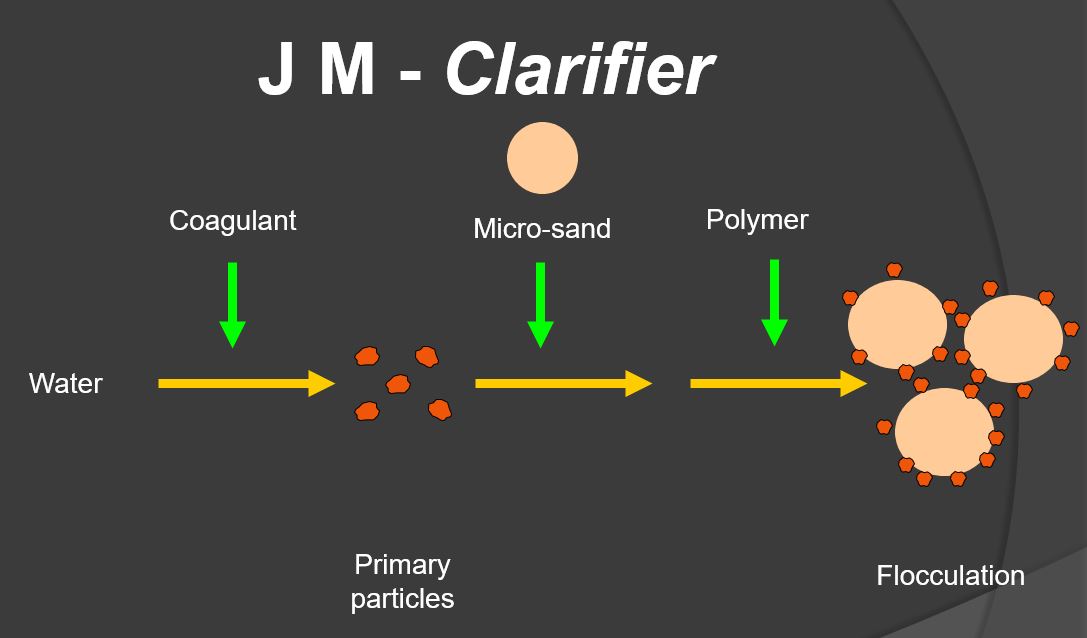

Classifier is a combination of

  • Chemical precipitation
  • Micro-sand enhanced flocculation

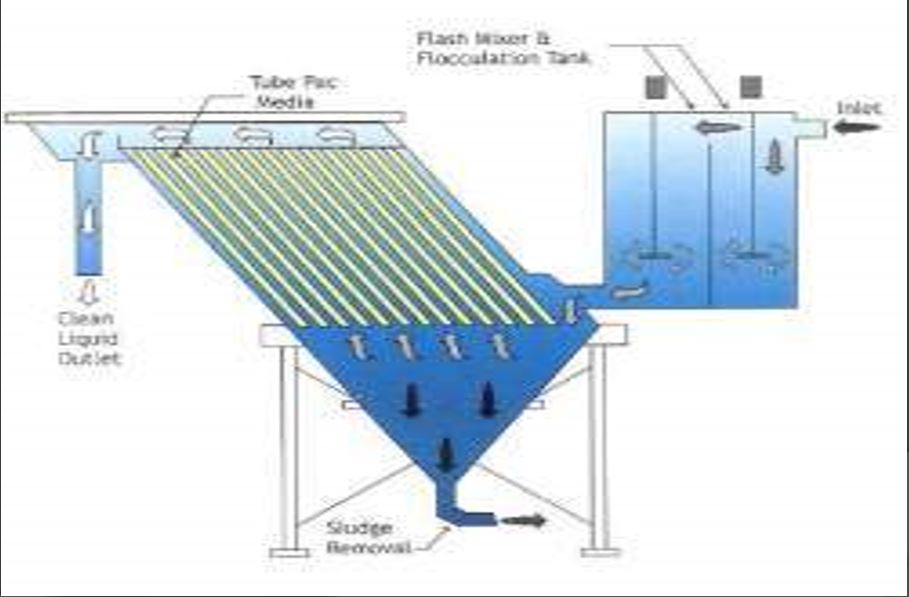

  • Lamella sedimentation

Coagulant

  • Aluminium based
  • Iron based

Flocculants

  • Organic polymer
  • Anionic, non-ionic or cationic

Micro-sand

  • Ordinary silica sand
  • Effective size ~120 μm

Electricity

Benefits of Cross Flow Process

  • Reduced footprint in comparison to conventional clarifiers,
  • Flexible and efficient treatment system,
  • Ensures easy operation and maintenance, which maximizes production
  • Optimize the total management of the water cycle.
  • Reduce related operating costs,
  • Improve the environmental performance and safety of plants

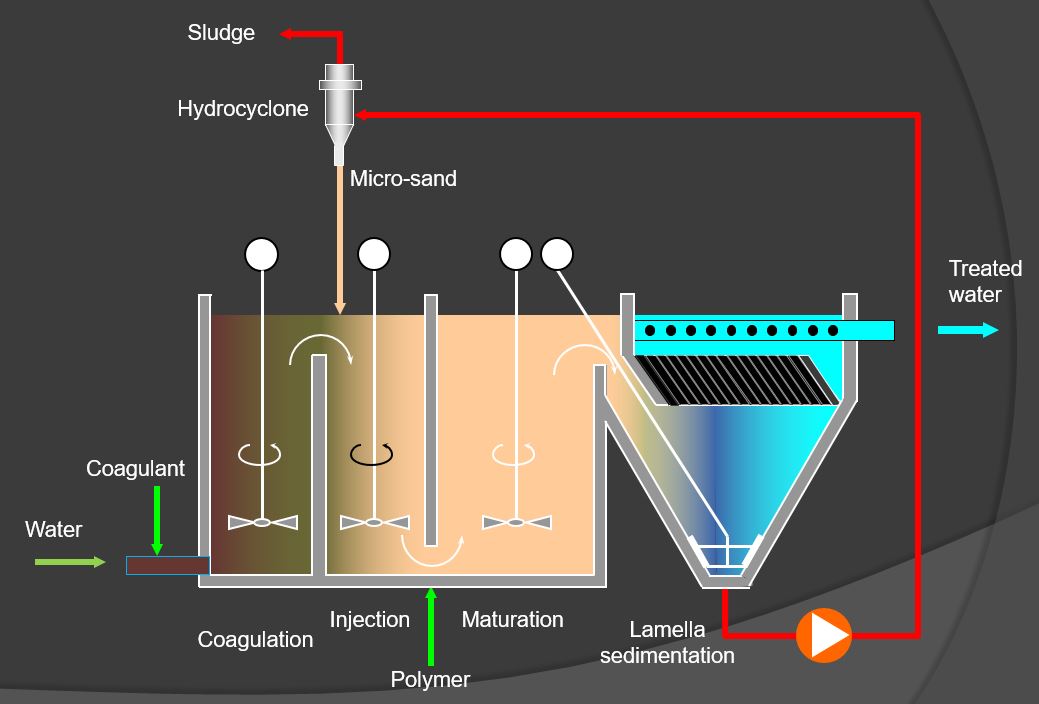

Retention time

  • Coagulation: 2 min (Drinking water), 1 min (Wastewater)
  • Injection: 2 min (Drinking water), 1 min (Wastewater)
  • Maturation: 6 min (Drinking water), 2 min (Wastewater)

Overflow rate

  • Drinking water: 40 - 60 m/h
  • Wastewater: 80 - 120 m/h
  • High treatment efficiency
  • Efficient use of chemicals
  • Compact system
  • Short start-up time
  • Stable process
  • Versatility

Efficient Use of Chemicals

Drinking water Wastewater Recipient
CSO Primary Tertiary
Suspended solids 80-98% 75-90% 50-80% 70-90% -
COD 65-90% 55-80% 20-50% 55-70% -
Total phosphorus 50-95% 50-95% 50-95% 50-90% -
Orthophosphate 50-98% 50-98% 50-98% 50-98% -
Turbidit - - - - 99.9%

Applications

Drinking water

  • Surface water
  • Ground water
  • Wash water from filters

Wastewater

  • Primary
  • Tertiary
  • By-pass

Industry

  • Process water
  • Versatile process

Advantages

  • Compact system
  • Small foot print
  • Low installation costs
  • High treatment efficiency
  • Superior effluent quality Flexible process
  • Easy to optimise Short start-up time
  • Almost no “dead time” Stable process
  • Handles extreme conditions Simple
  • Easy to operate
